Dateianhang 'kluge_qos.txt'
Herunterladen 1 ##-----------------------------------------------------------------------------
2 ## qos.txt - OPT_QOS configuration parameters 2.1.0
3 ##
4 ## You can edit/change this file with FliwizNG 2.0.1 or any text editor.
5 ##
6 ## P L E A S E R E A D T H E D O C U M E N T A T I O N ,
7 ## S E E Q O S _ L I E S M I C H . T X T
8 ##
9 ## B I T T E U N B E D I N G T D I E D O K U M E N T A T I O N
10 ## L E S E N , S I E H E Q O S _ L I E S M I C H . T X T
11 ##
12 ## Creation: 02.05.2001 he
13 ## Last Update: 15.02.2002 nl
14 ##
15 ##
16 ## This program is free software; you can redistribute it and/or modify
17 ## it under the terms of the GNU General Public License as published by
18 ## the Free Software Foundation; either version 2 of the License, or
19 ## (at your option) any later version.
20 ##

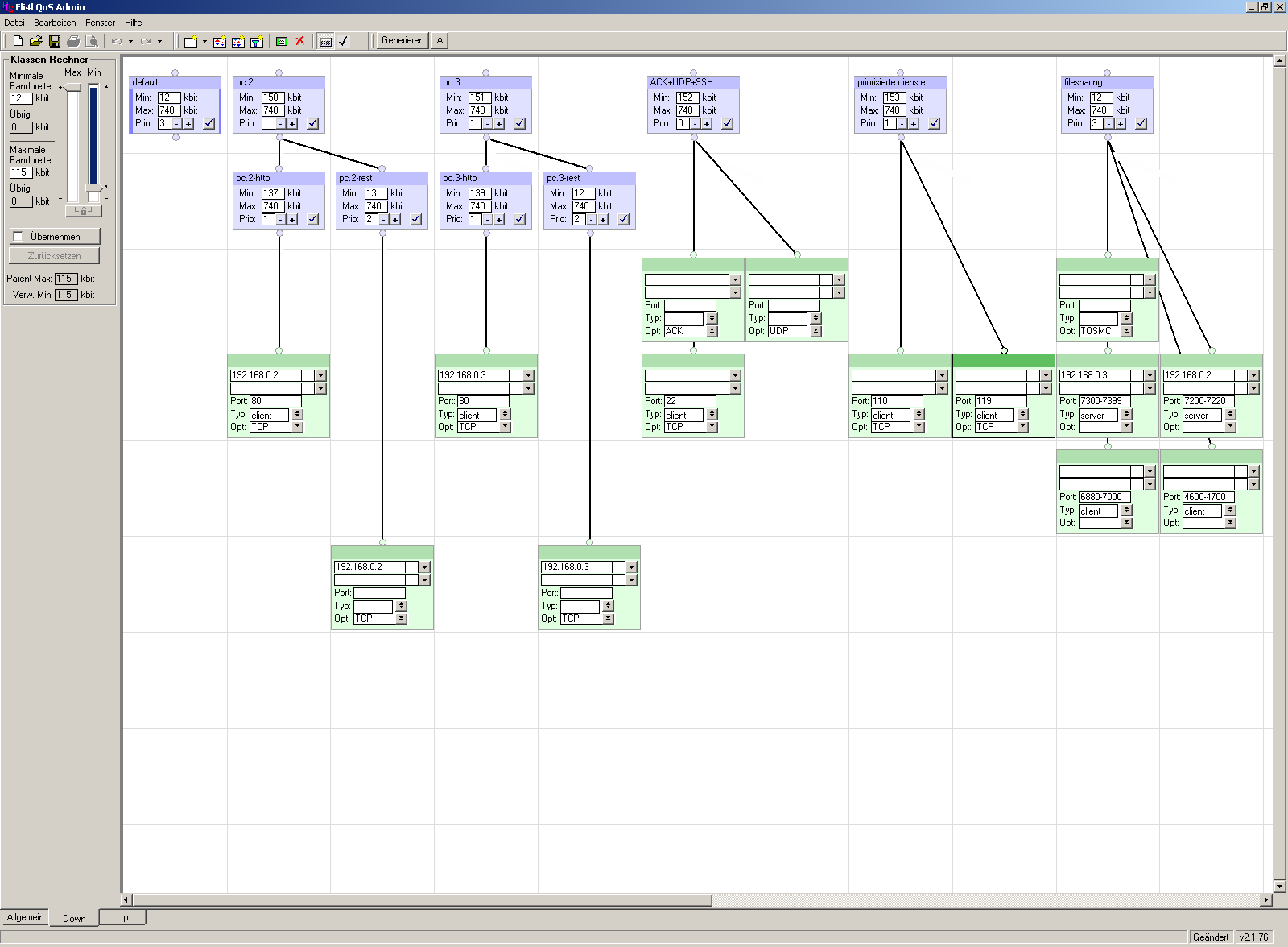

21 ## Erstellt mit Fli4lQoSAdmin v2.1.76
22 ## © 2002,2003 by KsWare http://fli4l.ksware.de/
23 ##
24 ## Erstellt am 12.07.2003 00:49:34
25 ##
26 ##-----------------------------------------------------------------------------
27
28 OPT_QOS='yes'
29
30 #QOS_FILEVERSION='FliQoSAdmin 1.1'
31 #QOS_PAGESIZE_DOWN='13,9'
32 #QOS_PAGESIZE_UP='10,9'
33
34 QOS_INTERNET_DEV='ppp0' # Device über das Daten ins Internet übertragen werden
35 QOS_INTERNET_BAND_DOWN='740kbit' # Maximale Downstreambandbreite des Internet-Zugangs
36 QOS_INTERNET_BAND_UP='115kbit' # Maximale Upstreambandbreite des Internet-Zugangs
37 QOS_INTERNET_DEFAULT_DOWN='1' # Standardklasse für Down
38 QOS_INTERNET_DEFAULT_UP='11' # Standardklasse für Up
39 QOS_LOCALNET_DEV='eth0' # Device über das das lokale Netzwerk angebunden ist
40 QOS_LOCALNET_BAND='100mbit' # Maximale Übertragungsrate ins lokalen Netz (LAN)
41
42 QOS_CLASS_N='20'
43
44 #QOS_CLASS_1_CAPTION='default'
45 #QOS_CLASS_1_CELLPOS='0,0'
46 QOS_CLASS_1_PARENT='0'
47 QOS_CLASS_1_MINBANDWIDTH='12kbit'
48 QOS_CLASS_1_MAXBANDWIDTH='740kbit'
49 QOS_CLASS_1_DIRECTION='down'
50 QOS_CLASS_1_PRIO='3'
51
52 #QOS_CLASS_2_CAPTION='pc.2'
53 #QOS_CLASS_2_CELLPOS='1,0'
54 QOS_CLASS_2_PARENT='0'
55 QOS_CLASS_2_MINBANDWIDTH='150kbit'
56 QOS_CLASS_2_MAXBANDWIDTH='740kbit'
57 QOS_CLASS_2_DIRECTION='down'
58 QOS_CLASS_2_PRIO=''
59
60 #QOS_CLASS_3_CAPTION='pc.3'
61 #QOS_CLASS_3_CELLPOS='3,0'
62 QOS_CLASS_3_PARENT='0'
63 QOS_CLASS_3_MINBANDWIDTH='151kbit'
64 QOS_CLASS_3_MAXBANDWIDTH='740kbit'
65 QOS_CLASS_3_DIRECTION='down'
66 QOS_CLASS_3_PRIO='1'
67
68 #QOS_CLASS_4_CAPTION='ACK+UDP+SSH'
69 #QOS_CLASS_4_CELLPOS='5,0'
70 QOS_CLASS_4_PARENT='0'
71 QOS_CLASS_4_MINBANDWIDTH='152kbit'
72 QOS_CLASS_4_MAXBANDWIDTH='740kbit'
73 QOS_CLASS_4_DIRECTION='down'
74 QOS_CLASS_4_PRIO='0'
75
76 #QOS_CLASS_5_CAPTION='priorisierte dienste'
77 #QOS_CLASS_5_CELLPOS='7,0'
78 QOS_CLASS_5_PARENT='0'
79 QOS_CLASS_5_MINBANDWIDTH='153kbit'
80 QOS_CLASS_5_MAXBANDWIDTH='740kbit'
81 QOS_CLASS_5_DIRECTION='down'
82 QOS_CLASS_5_PRIO='1'
83
84 #QOS_CLASS_6_CAPTION='filesharing'
85 #QOS_CLASS_6_CELLPOS='9,0'
86 QOS_CLASS_6_PARENT='0'
87 QOS_CLASS_6_MINBANDWIDTH='12kbit'
88 QOS_CLASS_6_MAXBANDWIDTH='740kbit'
89 QOS_CLASS_6_DIRECTION='down'
90 QOS_CLASS_6_PRIO='3'
91
92 #QOS_CLASS_7_CAPTION='pc.2-http'
93 #QOS_CLASS_7_CELLPOS='1,1'
94 QOS_CLASS_7_PARENT='2'
95 QOS_CLASS_7_MINBANDWIDTH='137kbit'
96 QOS_CLASS_7_MAXBANDWIDTH='740kbit'
97 QOS_CLASS_7_DIRECTION='down'
98 QOS_CLASS_7_PRIO='1'
99
100 #QOS_CLASS_8_CAPTION='pc.2-rest'
101 #QOS_CLASS_8_CELLPOS='2,1'
102 QOS_CLASS_8_PARENT='2'
103 QOS_CLASS_8_MINBANDWIDTH='13kbit'
104 QOS_CLASS_8_MAXBANDWIDTH='740kbit'
105 QOS_CLASS_8_DIRECTION='down'
106 QOS_CLASS_8_PRIO='2'
107
108 #QOS_CLASS_9_CAPTION='pc.3-http'
109 #QOS_CLASS_9_CELLPOS='3,1'
110 QOS_CLASS_9_PARENT='3'
111 QOS_CLASS_9_MINBANDWIDTH='139kbit'
112 QOS_CLASS_9_MAXBANDWIDTH='740kbit'
113 QOS_CLASS_9_DIRECTION='down'
114 QOS_CLASS_9_PRIO='1'
115
116 #QOS_CLASS_10_CAPTION='pc.3-rest'
117 #QOS_CLASS_10_CELLPOS='4,1'
118 QOS_CLASS_10_PARENT='3'
119 QOS_CLASS_10_MINBANDWIDTH='12kbit'
120 QOS_CLASS_10_MAXBANDWIDTH='740kbit'
121 QOS_CLASS_10_DIRECTION='down'
122 QOS_CLASS_10_PRIO='2'
123
124 #QOS_CLASS_11_CAPTION='default'
125 #QOS_CLASS_11_CELLPOS='0,0'
126 QOS_CLASS_11_PARENT='0'
127 QOS_CLASS_11_MINBANDWIDTH='12kbit'
128 QOS_CLASS_11_MAXBANDWIDTH='115kbit'
129 QOS_CLASS_11_DIRECTION='up'
130 QOS_CLASS_11_PRIO='3'
131
132 #QOS_CLASS_12_CAPTION='pc.2'
133 #QOS_CLASS_12_CELLPOS='1,0'
134 QOS_CLASS_12_PARENT='0'
135 QOS_CLASS_12_MINBANDWIDTH='25kbit'
136 QOS_CLASS_12_MAXBANDWIDTH='115kbit'
137 QOS_CLASS_12_DIRECTION='up'
138 QOS_CLASS_12_PRIO='0'
139
140 #QOS_CLASS_13_CAPTION='pc-3'
141 #QOS_CLASS_13_CELLPOS='3,0'
142 QOS_CLASS_13_PARENT='0'
143 QOS_CLASS_13_MINBANDWIDTH='26kbit'
144 QOS_CLASS_13_MAXBANDWIDTH='115kbit'
145 QOS_CLASS_13_DIRECTION='up'
146 QOS_CLASS_13_PRIO='0'
147
148 #QOS_CLASS_14_CAPTION='ACK'
149 #QOS_CLASS_14_CELLPOS='5,0'
150 QOS_CLASS_14_PARENT='0'
151 QOS_CLASS_14_MINBANDWIDTH='27kbit'
152 QOS_CLASS_14_MAXBANDWIDTH='115kbit'
153 QOS_CLASS_14_DIRECTION='up'
154 QOS_CLASS_14_PRIO='0'
155
156 #QOS_CLASS_15_CAPTION='UDP+SSH'
157 #QOS_CLASS_15_CELLPOS='6,0'
158 QOS_CLASS_15_PARENT='0'
159 QOS_CLASS_15_MINBANDWIDTH='13kbit'
160 QOS_CLASS_15_MAXBANDWIDTH='115kbit'
161 QOS_CLASS_15_DIRECTION='up'
162 QOS_CLASS_15_PRIO='0'
163
164 #QOS_CLASS_16_CAPTION='filesharing'
165 #QOS_CLASS_16_CELLPOS='7,0'
166 QOS_CLASS_16_PARENT='0'
167 QOS_CLASS_16_MINBANDWIDTH='12kbit'
168 QOS_CLASS_16_MAXBANDWIDTH='115kbit'
169 QOS_CLASS_16_DIRECTION='up'
170 QOS_CLASS_16_PRIO='3'
171
172 #QOS_CLASS_17_CAPTION='pc.2-http'
173 #QOS_CLASS_17_CELLPOS='1,1'
174 QOS_CLASS_17_PARENT='12'
175 QOS_CLASS_17_MINBANDWIDTH='13kbit'
176 QOS_CLASS_17_MAXBANDWIDTH='115kbit'
177 QOS_CLASS_17_DIRECTION='up'
178 QOS_CLASS_17_PRIO='1'
179
180 #QOS_CLASS_18_CAPTION='pc.2-rest'
181 #QOS_CLASS_18_CELLPOS='2,1'
182 QOS_CLASS_18_PARENT='12'
183 QOS_CLASS_18_MINBANDWIDTH='12kbit'
184 QOS_CLASS_18_MAXBANDWIDTH='115kbit'
185 QOS_CLASS_18_DIRECTION='up'
186 QOS_CLASS_18_PRIO='2'
187
188 #QOS_CLASS_19_CAPTION='pc.3-http'
189 #QOS_CLASS_19_CELLPOS='3,1'
190 QOS_CLASS_19_PARENT='13'
191 QOS_CLASS_19_MINBANDWIDTH='12kbit'
192 QOS_CLASS_19_MAXBANDWIDTH='115kbit'
193 QOS_CLASS_19_DIRECTION='up'
194 QOS_CLASS_19_PRIO='1'
195
196 #QOS_CLASS_20_CAPTION='pc.3-rest'
197 #QOS_CLASS_20_CELLPOS='4,1'
198 QOS_CLASS_20_PARENT='13'
199 QOS_CLASS_20_MINBANDWIDTH='14kbit'
200 QOS_CLASS_20_MAXBANDWIDTH='115kbit'
201 QOS_CLASS_20_DIRECTION='up'
202 QOS_CLASS_20_PRIO='2'
203
204 QOS_FILTER_N='26'
205
206 #QOS_FILTER_1_CAPTION=''
207 #QOS_FILTER_1_CELLPOS='5,2'
208 QOS_FILTER_1_CLASS='4'
209 QOS_FILTER_1_IP_INTERN=''
210 QOS_FILTER_1_IP_EXTERN=''
211 QOS_FILTER_1_PORT=''
212 QOS_FILTER_1_PORT_TYPE=''
213 QOS_FILTER_1_OPTION='ACK'
214
215 #QOS_FILTER_2_CAPTION=''
216 #QOS_FILTER_2_CELLPOS='6,2'
217 QOS_FILTER_2_CLASS='4'
218 QOS_FILTER_2_IP_INTERN=''
219 QOS_FILTER_2_IP_EXTERN=''
220 QOS_FILTER_2_PORT=''
221 QOS_FILTER_2_PORT_TYPE=''
222 QOS_FILTER_2_OPTION='UDP'
223
224 #QOS_FILTER_3_CAPTION=''
225 #QOS_FILTER_3_CELLPOS='9,2'
226 QOS_FILTER_3_CLASS='6'
227 QOS_FILTER_3_IP_INTERN=''
228 QOS_FILTER_3_IP_EXTERN=''
229 QOS_FILTER_3_PORT=''
230 QOS_FILTER_3_PORT_TYPE=''
231 QOS_FILTER_3_OPTION='TOSMC'
232
233 #QOS_FILTER_4_CAPTION=''
234 #QOS_FILTER_4_CELLPOS='1,3'
235 QOS_FILTER_4_CLASS='7'
236 QOS_FILTER_4_IP_INTERN='192.168.0.2'
237 QOS_FILTER_4_IP_EXTERN=''
238 QOS_FILTER_4_PORT='80'
239 QOS_FILTER_4_PORT_TYPE='client'
240 QOS_FILTER_4_OPTION='TCP'
241
242 #QOS_FILTER_5_CAPTION=''
243 #QOS_FILTER_5_CELLPOS='3,3'
244 QOS_FILTER_5_CLASS='9'
245 QOS_FILTER_5_IP_INTERN='192.168.0.3'
246 QOS_FILTER_5_IP_EXTERN=''
247 QOS_FILTER_5_PORT='80'
248 QOS_FILTER_5_PORT_TYPE='client'
249 QOS_FILTER_5_OPTION='TCP'
250
251 #QOS_FILTER_6_CAPTION=''
252 #QOS_FILTER_6_CELLPOS='5,3'
253 QOS_FILTER_6_CLASS='4'
254 QOS_FILTER_6_IP_INTERN=''
255 QOS_FILTER_6_IP_EXTERN=''
256 QOS_FILTER_6_PORT='22'
257 QOS_FILTER_6_PORT_TYPE='client'
258 QOS_FILTER_6_OPTION='TCP'
259
260 #QOS_FILTER_7_CAPTION=''
261 #QOS_FILTER_7_CELLPOS='7,3'
262 QOS_FILTER_7_CLASS='5'
263 QOS_FILTER_7_IP_INTERN=''
264 QOS_FILTER_7_IP_EXTERN=''
265 QOS_FILTER_7_PORT='110'
266 QOS_FILTER_7_PORT_TYPE='client'
267 QOS_FILTER_7_OPTION='TCP'
268
269 #QOS_FILTER_8_CAPTION=''
270 #QOS_FILTER_8_CELLPOS='8,3'
271 QOS_FILTER_8_CLASS='5'
272 QOS_FILTER_8_IP_INTERN=''
273 QOS_FILTER_8_IP_EXTERN=''
274 QOS_FILTER_8_PORT='119'
275 QOS_FILTER_8_PORT_TYPE='client'
276 QOS_FILTER_8_OPTION='TCP'
277
278 #QOS_FILTER_9_CAPTION=''
279 #QOS_FILTER_9_CELLPOS='9,3'
280 QOS_FILTER_9_CLASS='6'
281 QOS_FILTER_9_IP_INTERN='192.168.0.3'
282 QOS_FILTER_9_IP_EXTERN=''
283 QOS_FILTER_9_PORT='7300-7399'
284 QOS_FILTER_9_PORT_TYPE='server'
285 QOS_FILTER_9_OPTION=''
286
287 #QOS_FILTER_10_CAPTION=''
288 #QOS_FILTER_10_CELLPOS='10,3'
289 QOS_FILTER_10_CLASS='6'
290 QOS_FILTER_10_IP_INTERN='192.168.0.2'
291 QOS_FILTER_10_IP_EXTERN=''
292 QOS_FILTER_10_PORT='7200-7220'
293 QOS_FILTER_10_PORT_TYPE='server'
294 QOS_FILTER_10_OPTION=''
295
296 #QOS_FILTER_11_CAPTION=''
297 #QOS_FILTER_11_CELLPOS='9,4'
298 QOS_FILTER_11_CLASS='6'
299 QOS_FILTER_11_IP_INTERN=''
300 QOS_FILTER_11_IP_EXTERN=''
301 QOS_FILTER_11_PORT='6880-7000'
302 QOS_FILTER_11_PORT_TYPE='client'
303 QOS_FILTER_11_OPTION=''
304
305 #QOS_FILTER_12_CAPTION=''
306 #QOS_FILTER_12_CELLPOS='10,4'
307 QOS_FILTER_12_CLASS='6'
308 QOS_FILTER_12_IP_INTERN=''
309 QOS_FILTER_12_IP_EXTERN=''
310 QOS_FILTER_12_PORT='4600-4700'
311 QOS_FILTER_12_PORT_TYPE='client'
312 QOS_FILTER_12_OPTION=''
313
314 #QOS_FILTER_13_CAPTION=''
315 #QOS_FILTER_13_CELLPOS='2,5'
316 QOS_FILTER_13_CLASS='8'
317 QOS_FILTER_13_IP_INTERN='192.168.0.2'
318 QOS_FILTER_13_IP_EXTERN=''
319 QOS_FILTER_13_PORT=''
320 QOS_FILTER_13_PORT_TYPE=''
321 QOS_FILTER_13_OPTION='TCP'
322
323 #QOS_FILTER_14_CAPTION=''
324 #QOS_FILTER_14_CELLPOS='4,5'
325 QOS_FILTER_14_CLASS='10'
326 QOS_FILTER_14_IP_INTERN='192.168.0.3'
327 QOS_FILTER_14_IP_EXTERN=''
328 QOS_FILTER_14_PORT=''
329 QOS_FILTER_14_PORT_TYPE=''
330 QOS_FILTER_14_OPTION='TCP'
331
332 #QOS_FILTER_15_CAPTION=''
333 #QOS_FILTER_15_CELLPOS='5,2'
334 QOS_FILTER_15_CLASS='14'
335 QOS_FILTER_15_IP_INTERN=''
336 QOS_FILTER_15_IP_EXTERN=''
337 QOS_FILTER_15_PORT=''
338 QOS_FILTER_15_PORT_TYPE=''
339 QOS_FILTER_15_OPTION='ACK'
340
341 #QOS_FILTER_16_CAPTION=''
342 #QOS_FILTER_16_CELLPOS='6,2'
343 QOS_FILTER_16_CLASS='15'
344 QOS_FILTER_16_IP_INTERN=''
345 QOS_FILTER_16_IP_EXTERN=''
346 QOS_FILTER_16_PORT=''
347 QOS_FILTER_16_PORT_TYPE=''
348 QOS_FILTER_16_OPTION='UDP'
349
350 #QOS_FILTER_17_CAPTION=''
351 #QOS_FILTER_17_CELLPOS='7,2'
352 QOS_FILTER_17_CLASS='16'
353 QOS_FILTER_17_IP_INTERN=''
354 QOS_FILTER_17_IP_EXTERN=''
355 QOS_FILTER_17_PORT=''
356 QOS_FILTER_17_PORT_TYPE=''
357 QOS_FILTER_17_OPTION='TOSMC'
358
359 #QOS_FILTER_18_CAPTION=''
360 #QOS_FILTER_18_CELLPOS='1,3'
361 QOS_FILTER_18_CLASS='17'
362 QOS_FILTER_18_IP_INTERN='192.168.0.2'
363 QOS_FILTER_18_IP_EXTERN=''
364 QOS_FILTER_18_PORT='80'
365 QOS_FILTER_18_PORT_TYPE='client'
366 QOS_FILTER_18_OPTION='TCP'
367
368 #QOS_FILTER_19_CAPTION=''
369 #QOS_FILTER_19_CELLPOS='3,3'
370 QOS_FILTER_19_CLASS='19'
371 QOS_FILTER_19_IP_INTERN='192.168.0.3'
372 QOS_FILTER_19_IP_EXTERN=''
373 QOS_FILTER_19_PORT='80'
374 QOS_FILTER_19_PORT_TYPE='client'
375 QOS_FILTER_19_OPTION='TCP'
376
377 #QOS_FILTER_20_CAPTION=''
378 #QOS_FILTER_20_CELLPOS='7,3'
379 QOS_FILTER_20_CLASS='16'
380 QOS_FILTER_20_IP_INTERN='192.168.0.3'
381 QOS_FILTER_20_IP_EXTERN=''
382 QOS_FILTER_20_PORT='7300-7399'
383 QOS_FILTER_20_PORT_TYPE='server'
384 QOS_FILTER_20_OPTION=''
385
386 #QOS_FILTER_21_CAPTION=''
387 #QOS_FILTER_21_CELLPOS='8,3'
388 QOS_FILTER_21_CLASS='16'
389 QOS_FILTER_21_IP_INTERN='192.168.0.2'
390 QOS_FILTER_21_IP_EXTERN=''
391 QOS_FILTER_21_PORT='7200-7220'
392 QOS_FILTER_21_PORT_TYPE='server'
393 QOS_FILTER_21_OPTION=''
394
395 #QOS_FILTER_22_CAPTION=''
396 #QOS_FILTER_22_CELLPOS='7,4'
397 QOS_FILTER_22_CLASS='16'
398 QOS_FILTER_22_IP_INTERN=''
399 QOS_FILTER_22_IP_EXTERN=''
400 QOS_FILTER_22_PORT='4600-4700'
401 QOS_FILTER_22_PORT_TYPE='client'
402 QOS_FILTER_22_OPTION=''
403
404 #QOS_FILTER_23_CAPTION=''
405 #QOS_FILTER_23_CELLPOS='8,4'
406 QOS_FILTER_23_CLASS='16'
407 QOS_FILTER_23_IP_INTERN=''
408 QOS_FILTER_23_IP_EXTERN=''
409 QOS_FILTER_23_PORT='6880-7000'
410 QOS_FILTER_23_PORT_TYPE='client'
411 QOS_FILTER_23_OPTION=''
412
413 #QOS_FILTER_24_CAPTION=''
414 #QOS_FILTER_24_CELLPOS='2,5'
415 QOS_FILTER_24_CLASS='18'
416 QOS_FILTER_24_IP_INTERN='192.168.0.2'
417 QOS_FILTER_24_IP_EXTERN=''
418 QOS_FILTER_24_PORT=''
419 QOS_FILTER_24_PORT_TYPE=''
420 QOS_FILTER_24_OPTION='TCP'
421
422 #QOS_FILTER_25_CAPTION=''
423 #QOS_FILTER_25_CELLPOS='4,5'
424 QOS_FILTER_25_CLASS='20'
425 QOS_FILTER_25_IP_INTERN='192.168.0.3'
426 QOS_FILTER_25_IP_EXTERN=''
427 QOS_FILTER_25_PORT=''
428 QOS_FILTER_25_PORT_TYPE=''
429 QOS_FILTER_25_OPTION='TCP'
430
431 #QOS_FILTER_26_CAPTION=''
432 #QOS_FILTER_26_CELLPOS='6,5'
433 QOS_FILTER_26_CLASS='15'
434 QOS_FILTER_26_IP_INTERN=''
435 QOS_FILTER_26_IP_EXTERN=''
436 QOS_FILTER_26_PORT='22'
437 QOS_FILTER_26_PORT_TYPE='client'
438 QOS_FILTER_26_OPTION='TCP'
439
440 #QOS_DESCRIPTION='0' #Zeilen
Gespeicherte Dateianhänge
Um Dateianhänge in eine Seite einzufügen sollte unbedingt eine Angabe wie attachment:dateiname benutzt werden, wie sie auch in der folgenden Liste der Dateien erscheint. Es sollte niemals die URL des Verweises ("laden") kopiert werden, da sich diese jederzeit ändern kann und damit der Verweis auf die Datei brechen würde.Sie dürfen keine Anhänge an diese Seite anhängen!
